One board for dsPIC33, PIC24 & PIC32.

One board for three architectures

dsPIC33, PIC24 & PIC32

For the first time we combined the power of three separate boards in one ultimate board for high performance Microchip MCUs. Developers now have the new scalability like never before.

One board for three architectures

Everything is already here

mikroProg™ on board

Powerful on-board mikroProg™ programmer and In-Circuit debugger supports over 101 microcontrollers. It features fast enhanced programming and rich set of debugging instructions.

mikroProg on board

Ready for all kinds of development

Multimedia peripherals

TFT 320x240 with touch panel, stereo audio codec, USB device and host, navigation switch and microSD card slot make a perfect set of peripherals for multimedia development.

Multimedia peripherals

For easier connections

mikroBUS™ support

This innovative new socket allows you to use dozens of Click accessory boards with almost no hardware adjustments. Adding new functionality to your device was never so easy.

mikroBUS support
  • Overview
  • Programming
  • Image Gallery
  • MCU Cards
  • Kits

What is EasyPIC Fusion™ v7?

EasyPIC Fusion™ v7 combines support for three different architectures: dsPIC33, PIC24 and PIC32 in a single development board It contains many on-board modules, including multimedia, Ethernet, USB, CAN and other. On-board mikroProg™ programmer and debugger supports 101 microcontrollers via MCU cards.

EasyPIC Fusion v7 - dsPIC33, PIC24 & PIC32 Development Board

Note: MCU card is sold separately.

It’s a big difference

mikroProg™ on board

One of the key advantages of this board is that it
comes with powerful on-board mikroProg™
programmer and In-Circuit Debugger, capable of
programming 101 microcontrollers.
Debugger is supported in mikroElektronika
compilers. It implements Step-over, Step-into,
Step-out, Run, Run To Cursor debugging operations,
as well as standard and advanced breakpoints.

New modules on your demand

Buzzer, Temp sensors, EEPROM

Board has modules for all kinds of development. TFT with Touch Panel, along with stereo mp3 codec allow you to develop multimedia applications. There are 2 USB connectors and 2 USB-UART connectors on the board as well. Piezo buzzer will help you test your sound signalization, and you can use I2C EEPROM, Serial Flash and microSD card slot to store data. DS1820 and LM35 temp sensor sockets are here too.

Supports Click™ Boards

Supports Click™ Boards

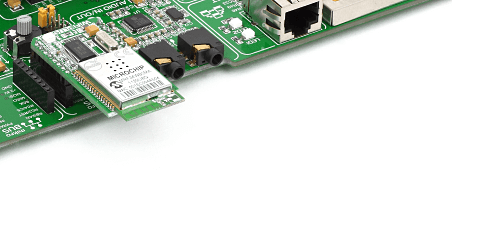

mikroBUS™ sockets

With two mikroBUS™ sockets you can add dozens of new functionality to your board with minimum hardware adjustments. Collection of mikroBUS compatible Click Boards is growing rapidly, and we have designed them with great care, so you don’t have to make any complicated settings. Just plug your board in, and you are good to go.

Ethernet on-board

We have it all covered

Ethernet on-board

Board is equipped with Ethernet connector
and two signal LEDs which enable you to
utilize ethernet feature of your
devices with Ethernet support.

Examples and Manuals

All you need to get started: well commented and easy to understand examples and colour user-friendly manuals. Examples demonstrate each on-board module and are a great starting point for your future projects. User manuals are easy to read, with good explanations and lots of photos.

Examples

Download Examples

Examples and libraries are written for all mikroElektronika dsPIC33/PIC24 andPIC32 compilers. They are well commented and each example contains working HEX file which you can load and use right away.

User Manuals

EasyPIC Fusion v7
User Manual
[5.97MB]
EasyPIC Fusion v7
Schematic
[460KB]

For drivers and software for on-board mikroProg™ programmer and debugger visit Programming tab.

What’s on board

Hover your cursor over the desired module and instantly get more information. Get to know your board even before you buy it.

EasyPIC Fusion v7 Front ViewPORT HeadersRight PORT HeadersADC potentiometersAudio connectorsPush buttonsCAN supportDS1820 Temp SensorEasyTFT BoardEthernet ConnectorICD2/ICD3 connectorNavigation switchLM35 Temp SensorMCU SocketmicroSD card slotmikroBUS socket 1mikroBUS socket 2mikroProgOscilloscope GNDsPiezo Buzzer3.3V power SupplyProgrammer USB connectorPush buttonsReset ButtonI2C EEPROMSerial FlashSMD LEDsTri-state DIP switchesUSB device connectorUSB host connectorUSB-UART 1 ConnectorUSB-UART 2 ConnectorAudio connectors
MCU Socket

MCU Socket

Board contains 104-pin MCU socket for placing MCU cards which carry supported PIC32, dsPIC33 and PIC24 microcontrollers in 100-pin TQFP packaging.

Supported Devices

EasyPIC Fusion™ v7 currently supports 125 Microchip devices. Browse through the list of supported devices or use the search box to filter out the microcontrollers or families you are interested in. For example, by typing “dsPIC33F” will leave only dsPIC33FXXXX microcontrollers in the list. More detailed search string will leave more narrow list of devices in the list box.

Device
Name
Device Pin
Count
Program
Memory (KB)
CPU Speed
(Mhz)
RAM
(Bytes)
mikroICD
Supported
