We have covered most of the PIC10®, PIC12®, PIC16®, PIC18®, dsPIC30/33®, PIC24® and PIC32® devices. You’ll never need another programmer!
In-Circuit Debugger Supported
Fast hardware debugger
Debug your code and monitor code execution on the chip itself. mikroProg™ technology brings the power of hardware debugging to your favorite compiler.
Support in 9 mikroE compilers
mikroProg™ is supported with mikroC™, mikroBasic™ and mikroPascal™ compilers for PIC®, dsPIC® and PIC32®. Choose the flavor that you like the most.
Compact and slim
Elegant minimalistic design, clean matte white plastic finish and colour indicator LEDs make our programmer the first of it’s kind in the world.

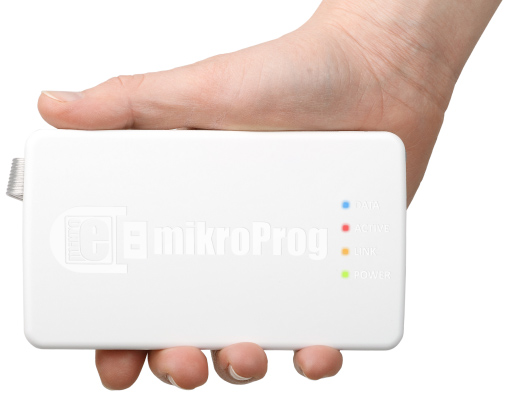

What is mikroProg™?
mikroProg™ is a fast USB 2.0 programmer with mikroICD™ hardware In-Circuit Debugger. Smart engineering allows mikroProg to support PIC10®, PIC12®, PIC16®, PIC18®, dsPIC30/33®, PIC24® and PIC32® devices in a single programmer! It supports over 897 microcontrollers from Microchip. Outstanding performance, easy operation and elegant design are it’s top features.
New Enhanced programming technology
We have done major enhancements in programming and debugging algorithms, and boosted programmer electronics to make it all possible. And the results are stunning! mikroProg™ is up to 400% faster than LvPICFlash.
Hardware debugging with mikroProg™
mikroProg™ has native support for mikroICD™ - hardware step-by-step In-Circuit Debugging in mikroElektronika compilers. It supports Step-over [F8], Step-into[F7], Step-out[Ctrl+F8], Run[F6] Run To Cursor[F4] debugging operations, as well as standard and advanced breakpoints.
Supports entire family device range
One firmware for all devices
With mikroProg™, single firmware takes care of all supported architectures. Supporting new microcontrollers is easy. Just by downloading the latest version of mikroProg Suite™ your programmer is ready to program new devices.
Generate any voltage you want from 1.8–5V
Power your target board
mikroProg™ can provide power supply to your target board. Using mikroProg Suite™ Software, or directly from your compiler you can set the voltage level to be generated for you. It can provide up to 150mA of current in the voltage range from 1.8–5V.
We retained the pinout that you are used to
Compatible with PICFlash
If you have already integrated previous programmer connector in your device, don’t worry. mikroProg™ retained the original connector pinout. Use front row of the connector (next to the knob) when programming mikromedia boards.
You can pull it as hard as you want, but
You won’t rip out the cable
How many times have you pulled the cable out of some device accidently and it just stopped working? We made sure to provide a secure connection of programer cable and created a holder to tie it firmly into place.

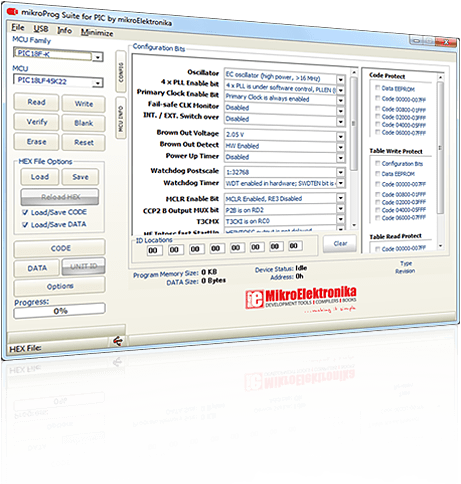

mikroProg Suite™ for PIC®
mikroProg™ programmer requires special programming software called mikroProg Suite™ for PIC®. This software is used for programming ALL of Microchip® microcontroller families, including PIC10, PIC12, PIC16, PIC18, dsPIC30/33, PIC24 and PIC32. Software has intuitive interface and SingleClick™ programming technology.
mikroProg Suite™ software and programmer drivers are certified for Windows XP, Windows Vista, Windows 7 and Windows 8 operating systems.
mikroProg™ currently supports 920 Microchip microcontrollers. Browse through the list of supported devices or use the search box to filter out the microcontrollers or families you are interested in. For example, by typing "PIC18" will leave only PIC18F, PIC18LF, PIC18FK and PIC18FJ microcontrollers in the list. More detailed search string will leave more narrow list of devices in the list box.
